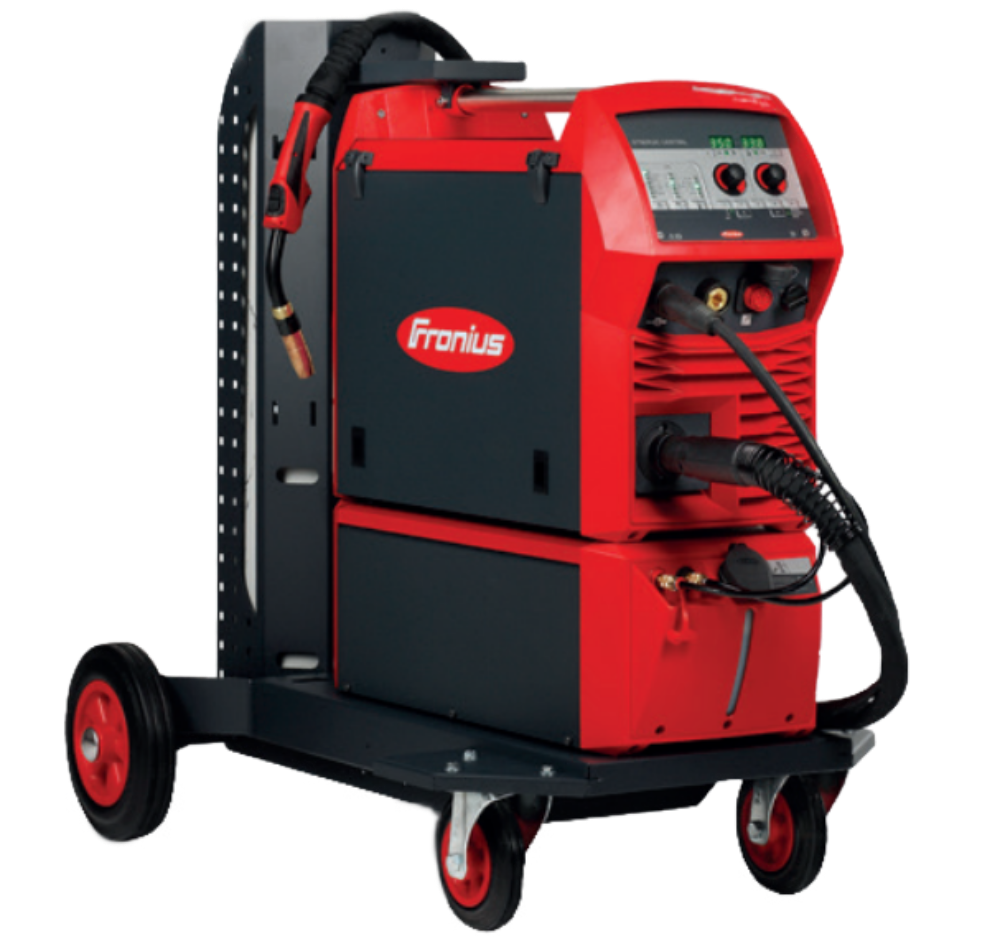

Fronius TransSteel 3000 C Pulse (Water-Cooled)
Premium water-cooled multi-process welder
All the performance of the standard TransSteel 3000 C Pulse—with an integrated water-cooling system for continuous, high-amperage welding. Perfect for extended duty cycles and reduced torch wear.
Pulse-arc welding with advanced thermal control
The water-cooled system enhances cooling efficiency, maintaining optimal performance even at 300 A in demanding environments. Pulse mode increases weld speed up to 30%, while reducing spatter by up to 70%.
Built for industrial MIG/MAG, TIG, and MMA (Stick) welding
One machine, three processes, no compromise. Includes over 100 synergic programs for steel, stainless, aluminum, and flux-cored wires, all accessible via an intuitive, menu-driven control panel.
Advanced Welding Features
- Pulse & SynchroPulse – For clean weld beads and ripple control, especially on aluminum.
- Spot & Stitch welding – For precision tacking and cosmetic seams.
- Special 4-step mode – Allows power adjustments mid-weld.
- EasyJob & Job Memory – Save frequently used settings for efficiency.
Water-Cooled System Advantages
- Enables longer welds without overheating
- Extends torch life under high duty-cycle use
- Compatible with Fronius water-cooled MIG and TIG torches
- Integrated tank and cooling circuit – no external units needed
Technical Specifications
- Output range: 10–300 A
- Duty cycle: 300 A @ 40%, 280 A @ 60%, 240 A @ 100%
- Cooling: Integrated water cooler (closed-loop)
- Torch compatibility: Water-cooled MIG/TIG torches
- Dimensions: 747 × 300 × 755 mm
- Weight: ~45–50 kg (with cooler)
- Protection class: IP23
- Power input: 3×400 V ±15%
- Wire feeder: Integrated 4-roller (D200/D300 spools)
- Wire diameters: 0.8–1.2 mm standard, up to 1.6 mm (depending on material)
Short Description (for SEO or Summary Block)
The Fronius TransSteel 3000 C Pulse (Water-Cooled) is an industrial-grade, multi-process welder designed for heavy-duty MIG/MAG, TIG, and Stick welding. Its built-in water cooling system supports extended, high-amperage welds up to 300 A with ease. Key features include pulsed arc modes, SynchroPulse control, over 100 synergic welding programs, and support for water-cooled torches. Ideal for aluminum, stainless, and high-volume fabrication work.
