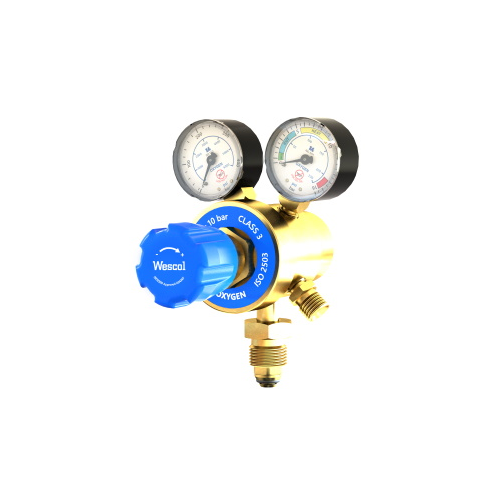

This Wescol 700 Series multi-stage Oxygen gas regulator offers improved delivery pressure control due to it's multi-stage (two stage) gas regulation.
Typical applications are those left unattended for periods of time such as cable pressurisation, chemical and laboratory.
Why buy Wescol Oxygen gas regulators?
- 5 Year Warranty
- Engineered in the UK
- Conforms to ISO 2503, AS4267, UL252, CGA E
- Materials & Finish (Body: CW614N Brass, Control Knob: ABS, Valve Seat: Elastomer)
Features
- Double chamber gas control
- Fits cylinders with vertical outlet valves
- Two gauges display- Bottle contents and output pressure
- Pressure controlled by the centre dial
- Maximum outlet pressure 10 Bar
- Maximum inlet pressure 300 Bar
- Right hand thread
- Manufactured according to BS EN ISO 2503:1998"
Technical Data
- Multi-Stage (Two Stage) Gas Regulation
- 300 bar rated inlet pressure
- 10 Bar Outlet Pressure
- Available in bottom or side entry
- Inlet connection BS 341 No 3 5/8" BSP RH male thread
- Outlet connection 3/8" BSP RH male thread.
- Manufactured in the UK to British Standard BS EN ISO 2503 : 2009
